Classic design, latest tech
Traditional daylight rifle scope appearance, designed to fit the habits of seasoned hunters.
Integrates the cutting-edge thermal imaging technology, for use in all kinds of environments and at light conditions.

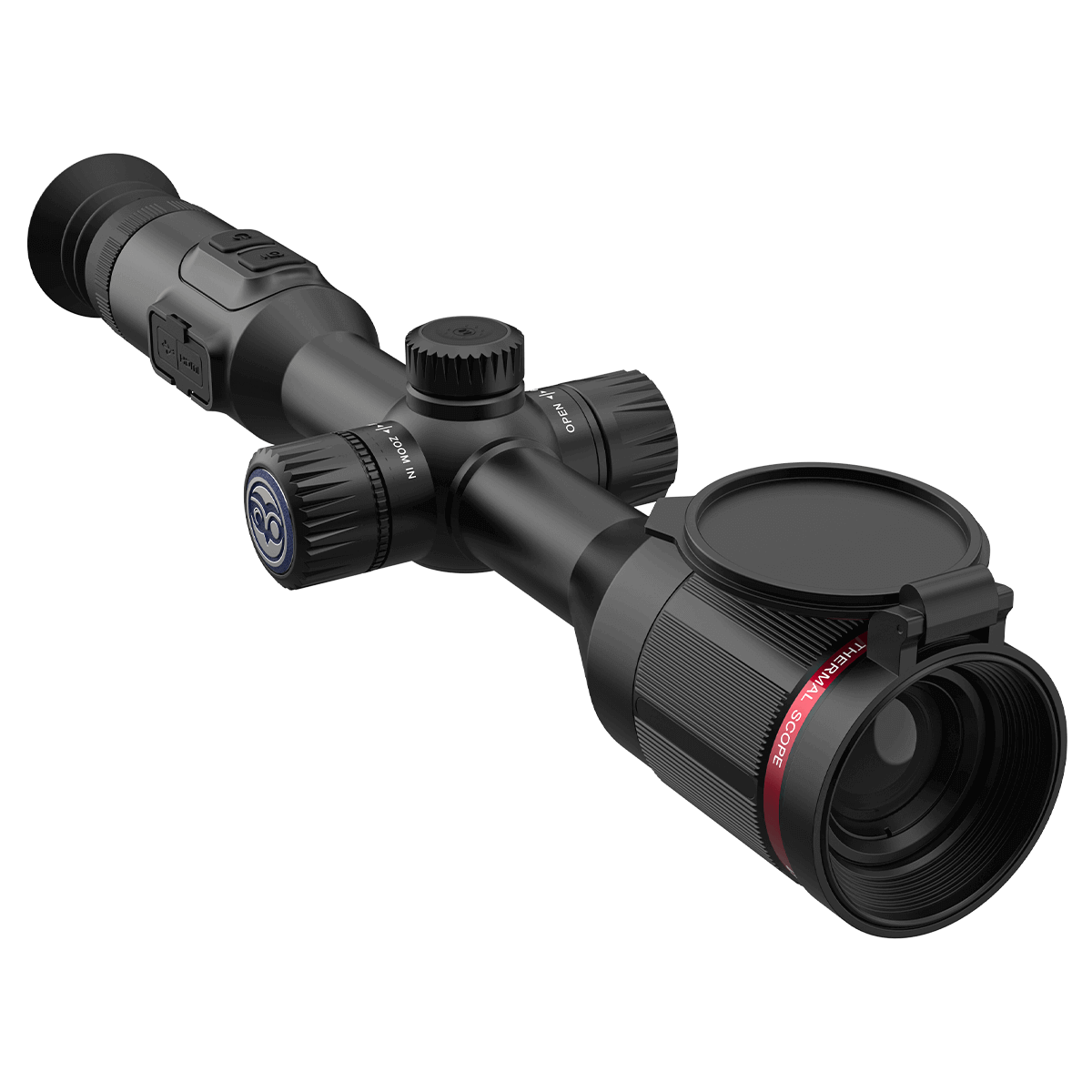

RSMX30 Thermal Imaging Riflescope retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. RSMX30 adopts 640×480 high- sensitivity thermal detector with lens of 35mm focal length, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.
Traditional daylight rifle scope appearance, designed to fit the habits of seasoned hunters.
Integrates the cutting-edge thermal imaging technology, for use in all kinds of environments and at light conditions.
1024 x 768 Full-color OLED. High contrast , image details boost, improving viewing comfort.
High quality display screen coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 1400m detection range for human (1.8m x 0.5m), and 2800m detection range for cars (2.3m x 2.3m).
Long press the up/down button to smoothly zoom in and zoom out. Fast and convenient adjustment.
1-8x zoom, offers a comfortable visual experience for both overview and detailed observation, make the search more flexible and pinpoint the target more quickly while hunting.
10 kinds of reticles, 6 kinds of reticle colors, 10 settings of reticle brightness, wide selection.
Reticle density can be zoomed in synchronously with the image, and the reticle line width can be maintained at any magnification, without conversion, avoiding errors, ensure aiming accuracy for hunting.
10 sets of zero calibrations can be saved, no need to recalibrate for different instruments.
6 color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.
One-button switch to identify the location of the target instantly, for all-weather observations.
“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes. Or you can just switch the scene modes randomly to add more fun to your observation.
Under “Enhance/Highlight” modes, the thermal image impurities can be effectively reduced to highlight the target.
Owlset RSM series (VEOT-RS) have dual battery system which consist of both internal battery and external battery. Support 10 hours super long duration life, changing battery without turn off, ensuring full day working mode.
Support photo taking, video recording, hotspot tracking and stadiametric rangefinder. Record wonderful moments anytime, easy to share with your friends.
Remote control by WIFI or Bluetooth, for diversified usage.
IP67 rating, working temperature is -30°C~50°C , no fear of severe weather, dust and shock.
It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.
Mounts on standard 30 mm scope rings, classic rifle scope shape of housing is ideal for all types of hunting and simplifies mounting procedures. No specialized tools or equipment are required, a pair of 30 mm scope rings is enough.
IP 67 protection level, rugged and durable
up to 1400 m human detection range
One-button switch to identify the location of the target instantly
Battery life 10 hours
1-8X smooth digital zoom, 2-16x magnification
640 × 480 high- sensitivity thermal detector
HD OLED full-color display, 1024 × 768
2 Year hassle-free warranty
Take advantage of this high-end RSM series thermal imaging riflescope to get more detailed image for your nature observation at nights or low light environments.
The thermal imaging riflescope can help law enforcement officers find suspects quickly, it also plays an important role in search and rescue for firefighters from any light and environment.
As a professional hunter, you know what a thermal imaging riflescope will do to improve shooting accuracy. Its diverse reticles, color palettes and gun type selections will get you prepared for any and all hunting terrains.
| Model | RSMX30 (SKU: VEOT-RS05) |
| Infrared Detector | |
| Detector type | VOx |
| Detector resolution and pitch | 640 × 480, 12 μm |
| Spectral range | 8 to 14 μm |
| NETD | ≤30mk @ F1 25℃ |
| Lens | |
| Focal length | 35 mm; F1.0 |
| Focus | Manual |
| Field of angle | 12.52°×9.41° |
| Frame rate | |
| Output frame frequency | 50Hz |
| Zoom | |
| Optical zoom | 2.0x |
| Digital zoom | 1 – 8x |
| Power | |
| Battery Type | Single 18650 battery (built-in) and customized battery (external) |
| Battery life | ≥ 5 hours |
| Interface | |
| USB | Type C, supporting power delivery, charging, and reading data from memory card |
| Video Interface | Micro HDMI |
| External expansion | External Display and Bluetooth remote control |
| Mechanical interface | Picatinny |
| Display | |
| Display Screen | Full-color 0.39′ OLED screen |
| Resolution | 1024 × 768 |
| Eyepiece | Exit pupil distance ≥ 48 mm, Exit pupil diameter ≥ 8 mm, Diopter ± 4 |
| Eyepiece zoom | 14x |
| Video output | Digital video |
| Button | |

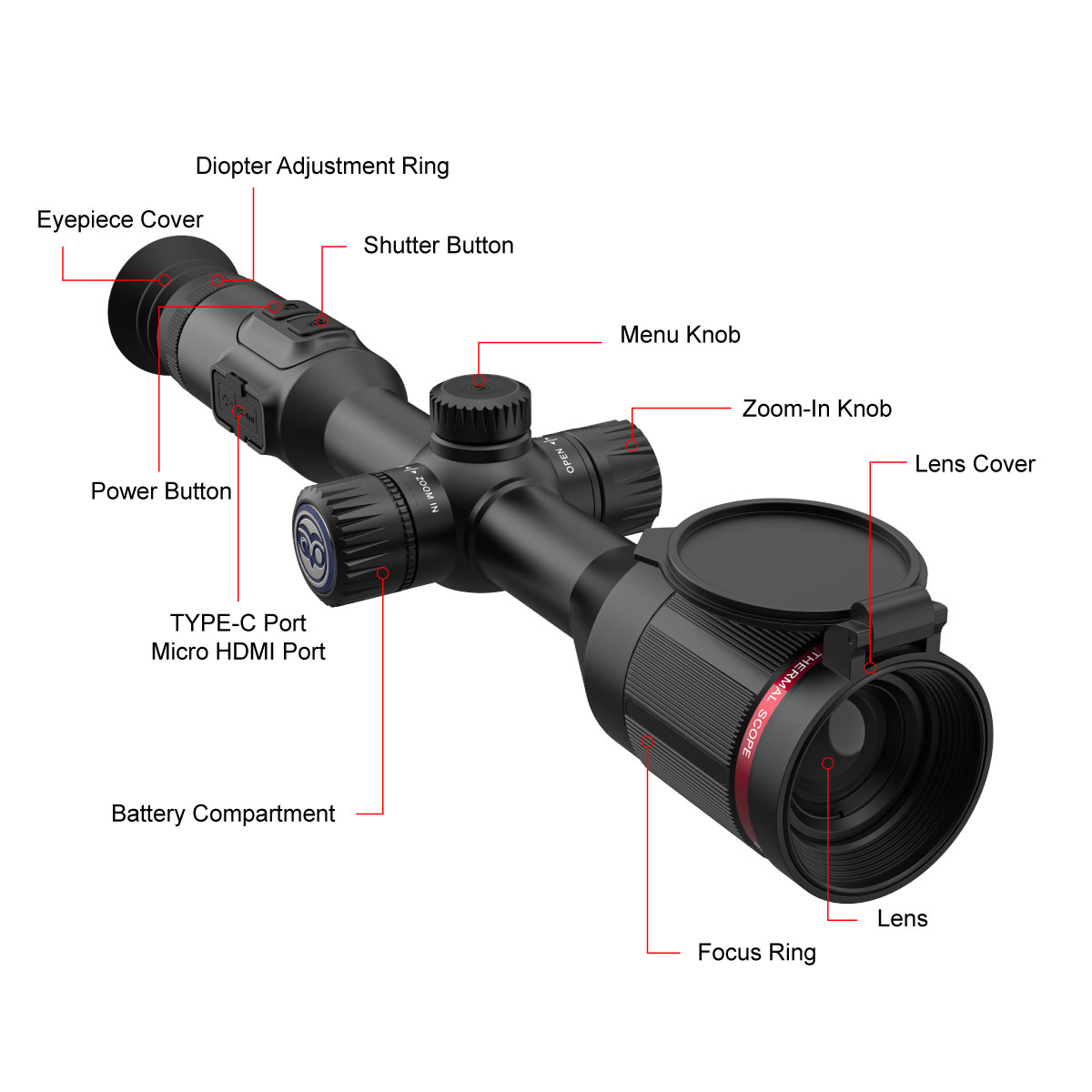

| Button functions | Power / Menu / Zoom / Photo / Video |
| Functions | |
| Smooth zoom | Available |
| Screen brightness adjustment | 10 levels |
| Detector brightness adjustment | 10 levels |
| Detector contrast adjustment | 10 levels |
| Image enhancement | Available |
| Scene Modes | Enhanced, Highlight and Natural |
| Ultra power saving mode | Available |
| Image capturing | Available |
| Video recording | Available |
| WIFI | Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters |
| Color Palettes | White Hot, Black Hot, Customized Red Hot , Green Hot, Iron Red, Blue Heat |
| Hot spot tracking | Available |
| Compensation modes | Shutter and scene compensation |
| Zero calibration | 50 m / 100 m / 200 m / 300 m / 500 m |
| Line Type | 10 types |
| Line brightness | 10 levels |
| Line color | Black / white / yellow / green / red / blue |
| Reticle | 10 reticle styles, 6 colors, 10 levels of brightness. |
| Rough ranging | Available |
| Automatic shutdown | Closed, 15, 30 or 60 mins |
| Auto sleep | Closed, 5, 10, or 15 mins |
| Language settings | Chinese / English / Russian / German / French |
| System | |
| Time setting | Available |
| Watermark settings | Closed, setting of date or date and time |
| PIP | Upper left, Upper middle, Upper right, Closed, PIP with division line |
| Restore to default | Available |
| Start up | 18s |
| Memory capacity | 16GB |
| Environmental Characteristics | |
| Operating Temperature | -30°C to 50°C (External power supply is required below -20°) |
| Storage Temperature | -45°C to 70°C |
| Humidity | Working and storage 10 % to 95 %, non-condensing |
| Shock | 500 G at 1 ms half sine pulse (as per IEC60068-2-27) |
| Vibration | 10 Hz – 150 Hz – 10 Hz 0.15 mm IEC60068-2-6 |
| Encapsulation | IP67 |
| Certification | IP67, RoHS, CE, FCC, EAC, UN38.3 (Battery Certificate) |
| Physical Characteristics | |
| Weight | ≤ 980g |

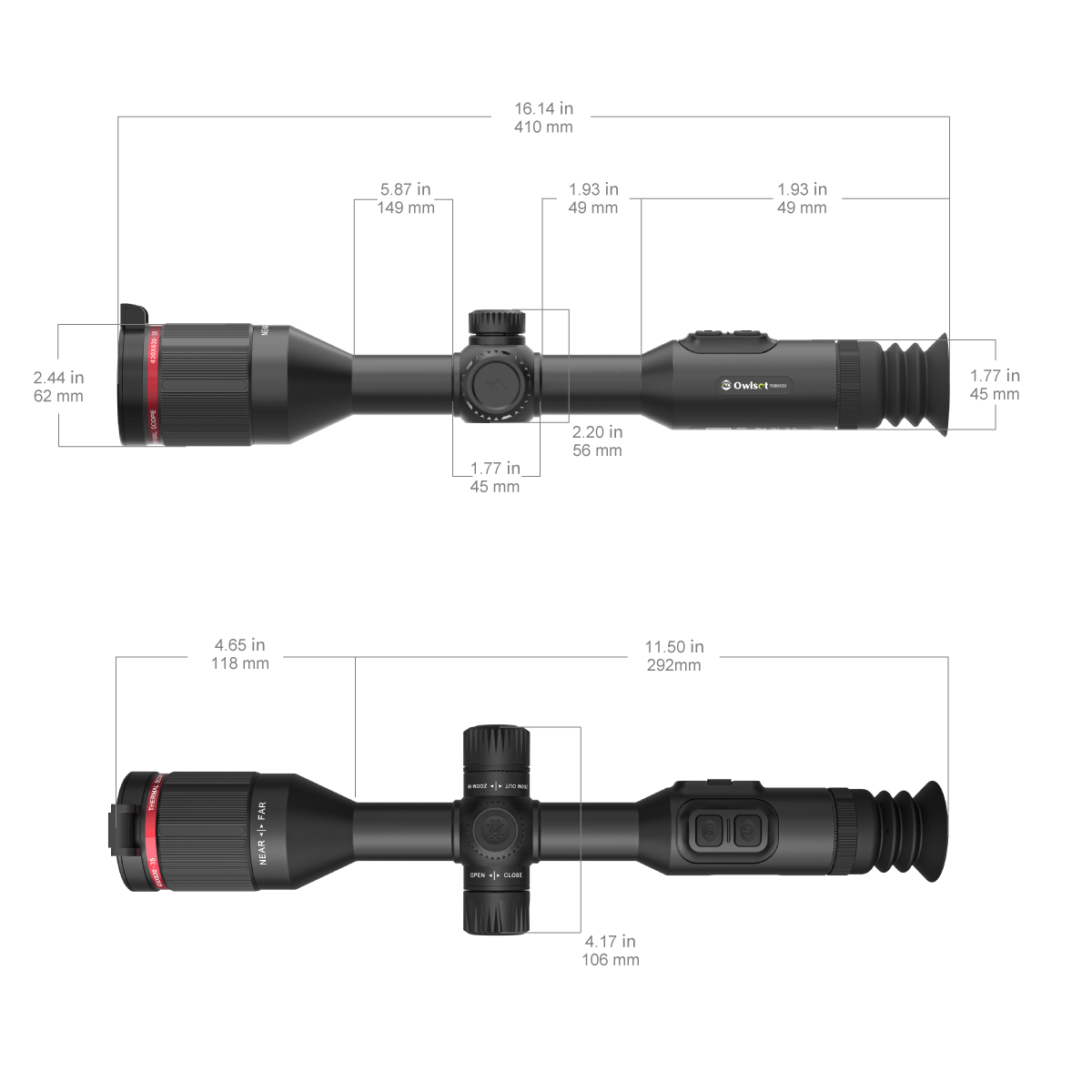

| Dimensions (excel eye mask) | 367 × 107 × 69 mm |
| Package Contents | |

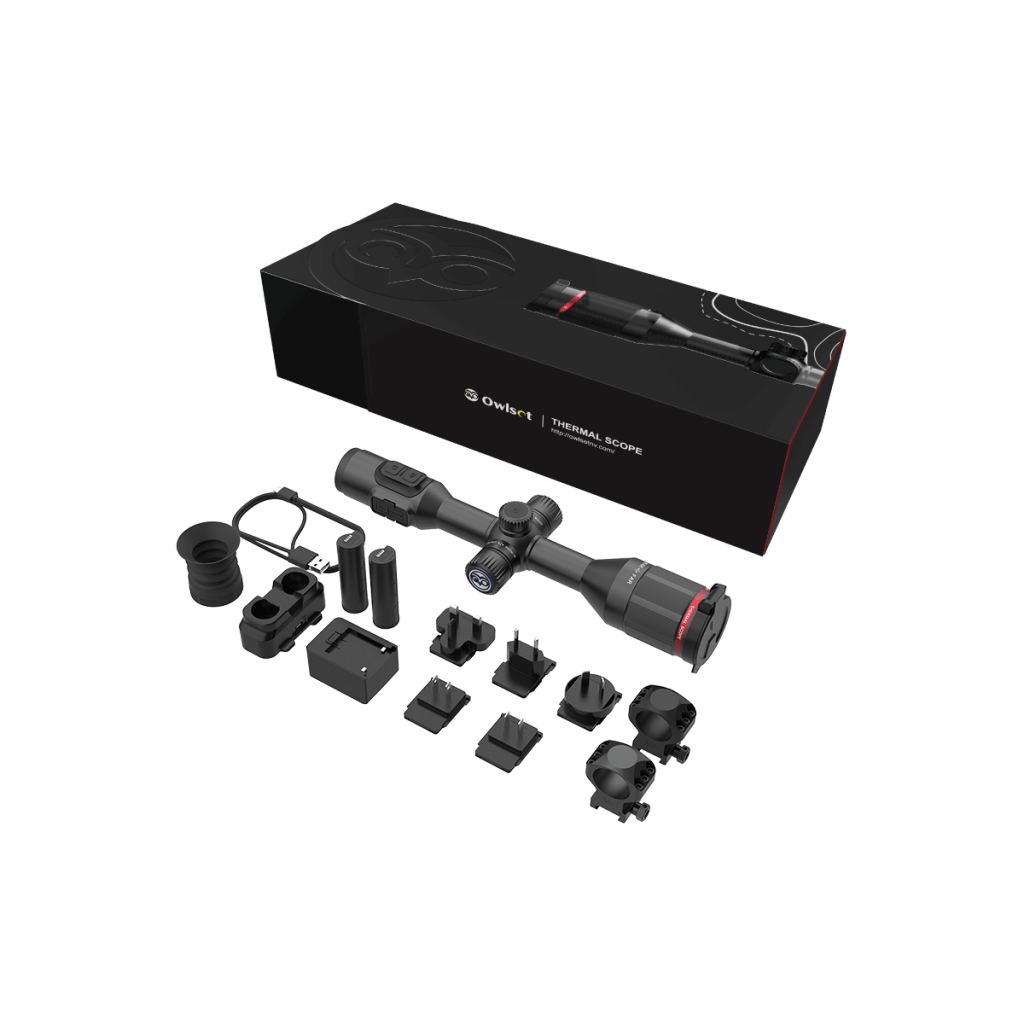

| Standard | Type C cable, lens cap, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery, customized battery charger (desktop charger), Micro HDMI cable, eye mask, two Picatinny rail clips, quick start guide |
| Optional | Bluetooth remote control, customized battery |
White hot, black hot, red hot, green hot, iron red, blue heat
Type C cable, lens cap, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery, customized
battery charger (desktop charger), Micro HDMI cable, eye mask, two Picatinny rail clips, quick start guide, all packaged in an exquisite box.
