Classic design, latest tech
Traditional daylight rifle scope appearance, designed to fit the habits of seasoned hunters.
Integrates the cutting-edge thermal imaging technology, for use in all kinds of environments and at light conditions.

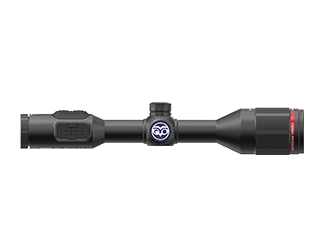

Thermal Riflescope RSM50 retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. RSM50 adopts 400×300 high- sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.
Traditional daylight rifle scope appearance, designed to fit the habits of seasoned hunters.
Integrates the cutting-edge thermal imaging technology, for use in all kinds of environments and at light conditions.
1024 x 768 Full-color OLED. High contrast , image details boost, improving viewing comfort.
High quality display screen coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 1400m detection range for human (1.8m x 0.5m), and 3000m detection range for cars (2.3m x 2.3m).
Long press the up/down button to smoothly zoom in and zoom out. Fast and convenient adjustment.
1-4x zoom, offers a comfortable visual experience for both overview and detailed observation, make the search more flexible and pinpoint the target more quickly while hunting.
10 kinds of reticles, 6 kinds of reticle colors, 10 settings of reticle brightness, wide selection.
Reticle density can be zoomed in synchronously with the image, and the reticle line width can be maintained at any magnification, without conversion, avoiding errors, ensure aiming accuracy for hunting.
10 sets of zero calibrations can be saved, no need to recalibrate for different instruments.
6 color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.
One-button switch to identify the location of the target instantly, for all-weather observations.
“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes.
10 hours super long duration life, changing battery without turn off, ensuring full day operations.
Support photo taking, video recording, hotspot tracking and stadiametric rangefinder. Record wonderful moments anytime, easy to share with your friends.
Remote control by WIFI or Bluetooth, for diversified usage.
IP67 rating, working temperature is -30°C~50°C , no fear of severe weather.
Mounts on standard 30 mm scope rings, classic rifle scope shape of housing is ideal for all types of hunting and simplifies mounting procedures. No specialized tools or equipment are required, a pair of 30 mm scope rings is enough.
IP 67
up to 1400 m human detection range
One-button switch to identify the location of the target instantly
Battery life 10 hours
1-4X smooth zoom, 3.2-12.8x magnification
400×300 high- sensitivity thermal detector
HD OLED full-color display, 1024 × 768
2 Year hassle-free warranty
Take advantage of this high-end RSM50 thermal riflescope to get more detailed image for your nature observation at nights or low light environments.
The thermal riflescope can help law enforcement officers find suspects quickly, it also plays an important role in search and rescue for firefighters from any light and environment.
As a professional hunter, you know what a thermal riflescope will do to improve shooting accuracy. Its diverse reticles, color palettes and gun type selections will get you prepared for any and all hunting terrains.
| Model | RSM50 (SKU: VEOT-RS01) |
| Infrared Detector | |
| Detector type | 400 × 300, 17 μm, Vox |
| Spectral range | 8 to 14 μm |
| NETD | ≤30 mk |
| Frame rate | 50 Hz |
| Lens | |
| Focal length | 50mm |
| Field of view | 7.78°x5.84° |
| Focusing | Manual |
| Display | |
| Display Screen | Full-color 0.39′ OLED screen, 1024 × 768 |
| Eyepiece | Exit pupil distance 48 mm, Eyepiece magnification 14x |
| Magnification | 3.2x-12.8x |
| Imaging | |
| Frame Rate | 50Hz |
| Digital Zoom | 1 – 4x (Smooth zoom) |
| Scene Modes | Enhanced, Highlight and Natural |
| Color Palettes | White Hot, Black Hot, Customized Red Hot , Green Hot, Iron Red, Blue Heat |
| Picture-in-picture | On/off, the position is adjustable |
| Functions | |
| WIFI/APP | Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission |
| Compensation modes | Scene compensation, shutter compensation and automatic compensation. |
| Zero calibration | 50 m / 100 m / 200 m / 300 m / 500 m |
| Gun Type Selection | 10 sets of zero calibrations can be saved, no need to recalibrate for different instruments. |
| Reticle | 10 reticle styles, 6 colors, 10 levels of brightness. |
| Others | Photo taking, video recording, hotspot tracking, Stadiametric rangefinder |
| Power Supply | |
| Battery Type | 1x internal battery + 1x external battery, rechargeable, change external battery without power cut off |
| Battery Operating Time | Battery continuous working time ≥ 10 hours |
| Interface | |
| USB | Type-C, it can supply external power and charge, and can read the data of memory card |
| Video Interface | Micro HDMI |
| Environmental Characteristics | |
| Operating Temperature | -30°C to 50°C (External power supply is required below -20°) |
| Storage Temperature | -45°C to 70°C |
| Humidity | Working and storage 10 % to 95 %, non-condensing |
| Shock | 500 G/1 ms |
| Vibration | 10 Hz – 150 Hz – 10 Hz 0.15 mm IEC60068-2-6 |
| IP Level | IP67 |
| Certification | RoHS, CE, FCC, EAC, UN38.3 (Battery Certificate) |
| Physical Characteristics | |
| Internal Storage | 16G |
| Weight (excl battery) | ≤950g |

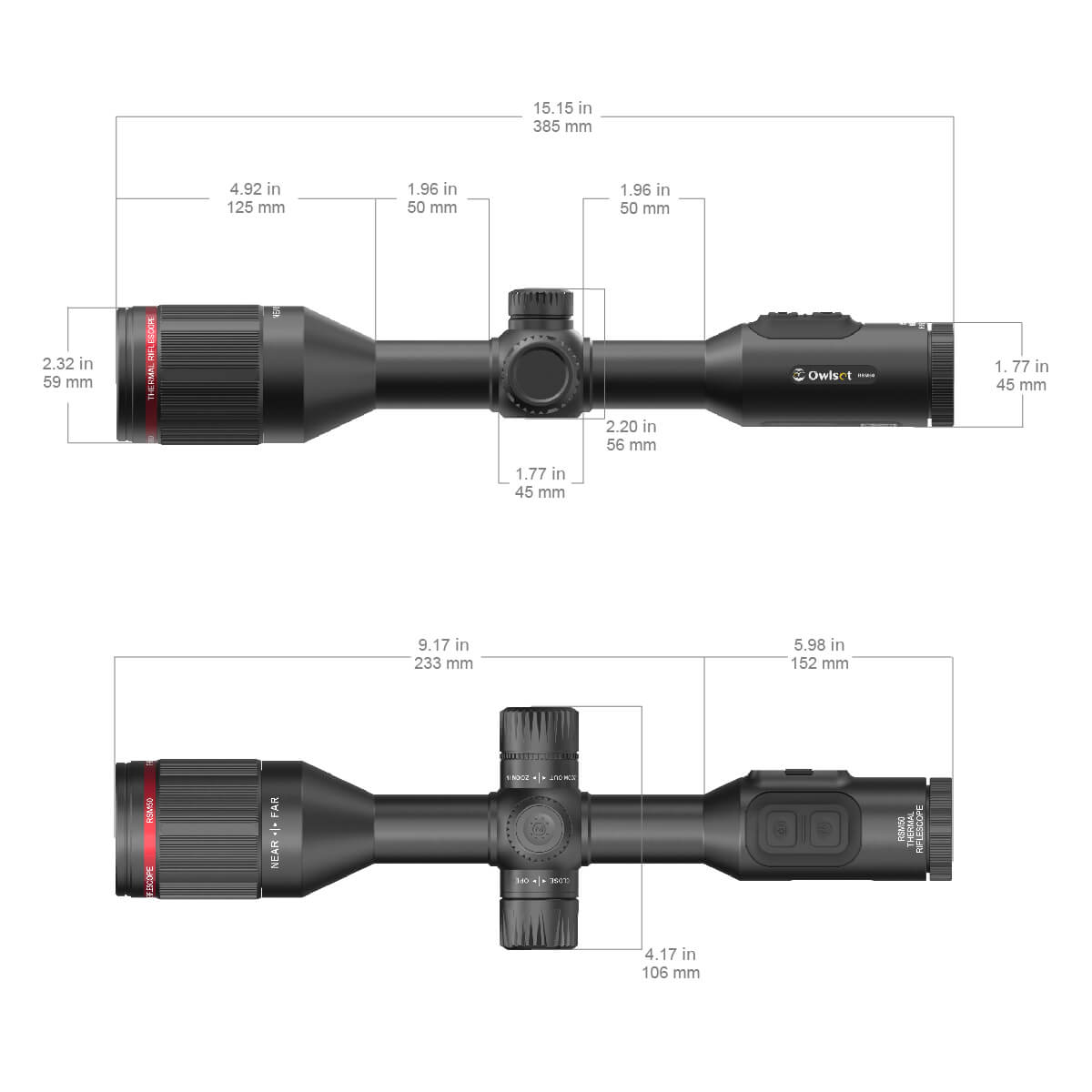

| Dimensions (excel eye mask) | 377 × 107 × 69 mm |
| Package Contents | |

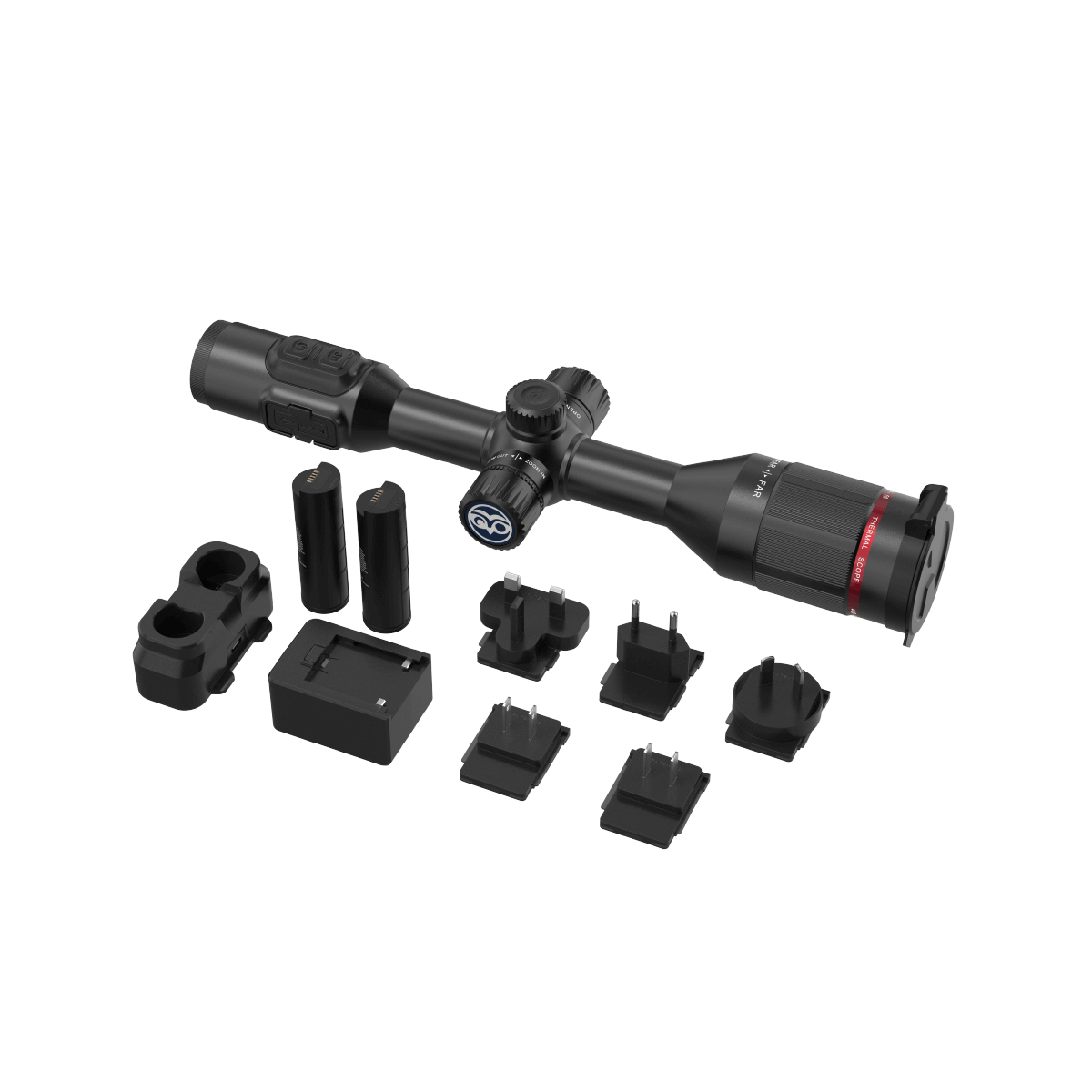

| Standard | Type C cable, lens cap, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery, customized battery charger (desktop charger), Micro HDMI cable, eye mask, two Picatinny rail clips, quick start guide |
| Optional | Battery, Remote Control |
White hot, black hot, red hot, green hot, iron red, blue heat
Type C cable, lens cap, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery, customized battery charger (desktop charger), Micro HDMI cable, eye mask, two Picatinny rail clips, quick start guide
